Specifications

Quick Overview

Build Location Hand-Wired In Petaluma, CA with the World's Finest Materials
Wattage Multi-Watt™ 10 or 25 (Channel Assignable)
Power Tube Type 2x Mesa EL84
Channels & Modes 2 Channels / 4 Modes
Mode Voicings / Styles Ch. 1 = Clean or Pushed
Ch. 2 = Vintage or Modern
Graphic EQ / Reverb / FX / Solo Reverb, FX Loop
Footswitchable Functions Ch. 1/2
Speaker(s) & Impedance n/a
Weight 17 Lbs.
Dimensions 6 7/8" H x 19" W x 9 1/2" D

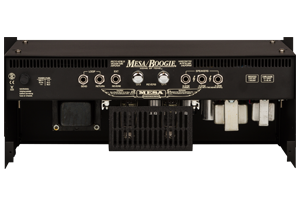

Available Formats Head, Rackmount & 1x12 Combo

Amplifier Features

Amp Type Tube
Chassis Material Aluminum
Rectifier Type Silicon Diodes
Rectifier Tubes n/a
Variac Power Switch n/a
Preamp Tubes 6x Mesa 12AX7
Power Amp Tubes 2x Mesa EL-84
Bias Switch for Alternate Power Tubes Types n/a
Maintenance Free Fixed Bias Yes
Wattage(s) Quick Reference 10 or 25 Watts - Channel Assignable - See Power Amp Details for more information
Built-In Power Amp Attenuation n/a
Power Amp Details (Class & Wattage) Mesa's Patented Multi-Watt™ (Patent 7,602,927) Power Amp, featuring Dyna-Watt™ technology, providing two power levels, each with different wiring configurations (Pentode/Triode) via two 10/25 Watt Power Switches: Choose from 2 power tubes operating in Class A/B Triode for lush harmonics and a sweet, liquid feel at lower volumes, producing 10 Watts or; 2 tubes operating in Mesa's proprietary Dyna-Watt™ Class A/B Pentode for maximum power, punch and clarity, producing 25 Watts
Convection or Fan Cooling Convection
Number of Footswitchable Channels (or Modes) Two Channels
Number of Style Modes Four
Number of Style Modes Per Channel Two
Types of Style Modes Per Channel Ch. 1 = Clean or Pushed
Ch. 2 = Vintage or Modern
Channel Controls Each Channel features Independent 2-Position Style Mode Switch, 10/25 Watt Multi-Watt™ Switch, Gain, Treble, Mid, Bass, Presence, Reverb (back panel) and Master Control
Graphic EQ and/or Contour n/a
Reverb / Effects & Bypass Options All-Tube, Long Spring Reverb with Independent Channel Controls (back panel)
Effects Loop & Bypass Options Fully Buffered Series FX Loop
Global Output Level Control n/a
Global Solo Level Control & Bypassable Options n/a
True-Bypass Options n/a
Tuner Output n/a
External Switching Jack Options and/or Midi External Switching Jack for Reverb
Speaker Outputs One 8 Ohm and Two 4 Ohm
Cabinet Simulation - Direct Live/Recording Output n/a
Headphone Output n/a
Slave Output n/a

Additional Amplifier Features

Extra Amplifier Features n/a

Accessories

Footswitch Included - 1 Button Footswitch (Ch. 1/2)
Slip Cover n/a

Cabinet Features

Cabinet Material n/a
Standard Finish Options (no extra cost) n/a
Custom Finish Options n/a
Speaker(s) & Impedance n/a
Casters n/a

Additional Cabinet Features

Extra Cabinet Features n/a

Weight And Dimensions

Weight 17 Lbs.
Height 6 7/8"
Width 19"
Depth 9 1/2"

DISCLAIMER: In the interest of continuous improvement, all specifications are subject to change without notice. To guarantee correct fit on custom ordered cases & covers, MESA recommends that customers make personal measurements of their product, after they have been received. MESA provides these measurements as a general reference only, without guarantee or liability.
